Page 8 - Langston 50 Catalog

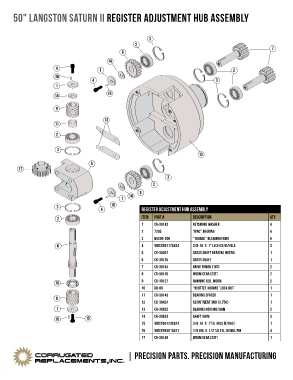

50" LANGSTON saturn II register adjustment hub assembly

3 7
2
8 2
14 3
41
16 4
1
14 16

9

13
11

2

3
12

5
17

3

2

1 14 8

3 16 register adjustment hub assembly
4

2 item part # description qty.

1 CR-30142 retaining washer 4

2 7205 “MRC” bearing 6

3 n5000-206 “truarc” retaining ring 6

6 4 mmc#90117a624 3/8-16 x 1” lg shcs w/hole 3

5 cr-30367 cross shaft bearing hosing 1

6 cr-30135 cross shaft 1

7 cr-30154 drive pinion (16T) 2

8 cr-30126 worm gear (20t) 2

10 9 cr-30127 running reg. worm 2

10 bh-06 “Whittet Higgins” lock nut 1

9 11 cr-30143 bearing spacer 1

12 cr-30424 adjustment hub (3.750) 1

1 13 cr-30822 bearing housing shim 2

16 15 14 cr-30823 shaft shim 3
15 mmc#90124a624 3/8-16 x 1”LG hhcS w/hole 1

16 mmc#98381a471 1/8 dia x 1/2”lg stl. dowel pin 4

17 cr-30149 worm gear (20T) 1

| Precision parts. Precision manufacturing
